Mark4 10inch v2 Long Range FPV Drone Frame Kit

The Mark4 10inch V2 is a heavy-duty carbon fiber drone frame engineered for serious long-range FPV flying. Designed to handle massive 10-inch propellers, this frame features a robust 473mm motor-to-motor diagonal and 7.5mm thick carbon arms—ensuring unmatched durability and vibration resistance during aggressive flight.

Ideal for analog builds but flexible enough to support digital setups, the Mark4 V2 is built with a modular layout, offering dual stack mounting patterns (30.5×30.5mm and 20x20mm) for both flight controller and VTX. The camera cage supports 19mm micro cameras, with carbon sidewalls to shield your lens from impacts.

Whether you’re cruising over vast landscapes or pushing the limits of long-range, this frame gives you the rugged foundation to go the distance.

FEATURES:

•  Supports 10-inch props for maximum endurance and lift

•  7.5mm carbon arms provide extreme rigidity and crash resistance

•  Dual stack support (30.5×30.5mm / 20x20mm) for FC & VTX

•  Micro camera cage (19mm) with carbon protection

•  Compatible with both 16mm and 19mm M3 motor mounting

SPECIFICATIONS:

• Motor Diagonal Distance: 473mm

• Weight: 270g

• Arm Thickness: 7.5mm

• Top/Bottom Plate Thickness: 3mm

• FC Mounting: 30.5×30.5mm M3 / 20x20mm M2

• VTX Mounting: 30.5×30.5mm M3 / 20x20mm M2

• Motor Mounting: 16mm / 19mm (M3)

• Camera Size Supported: 19mm (Micro)

PACKAGE INCLUDES:

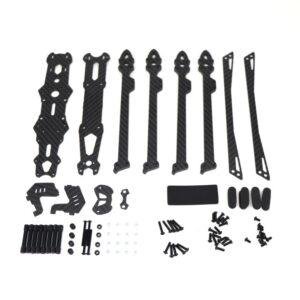

• 1x Mark4 10inch v2 FPV Drone Frame Kit
